Exploring Disparities and Solutions to U.S. Urban Heat Stress and Climate Justice

This project seeks to characterize the past, present and future of urban heat stress disparities resulting from past environmental and climate injustices in U.S. cities using a multi-modeling approach with high-resolution data.

Measuring heat exposure in urban areas is important for protecting and improving human health and creating equitable outcomes. The burden of urban heat stress is not distributed equally across cities; In the U.S., people of color and low-income individuals disproportionately live in areas with the potential for higher heat exposure. To capture these disparities, both appropriate metrics and sufficient resolution are needed.

Specifically, the project will assess:

1) Past: evaluate where and how historical climate injustices and heat stress exposure disparities have changed over time using a combination of satellite remote sensing products and sociodemographic data for the entire continental U.S..

2) Present: generate high-resolution (neighborhood to pedestrian scale) estimates of heat stress indices within select cities to address heat-related climate justice issues for four selected U.S. cities.

3) Future (near-term): model heat mitigation measures to understand how cities can reduce local heat stress and the resulting disparities through urban planning measures, such as tree planting and albedo management, with stakeholder collaboration.

4) Future (long-term): utilize future climate projections to examine population-weighted heat exposure and the capacity of urban-scale mitigation scenarios to compensate for background warming.

Technical Approach

Addressing current challenges surrounding the lack of suitable data, this project aims to generate high-resolution data that closely relates to the human experience in urban environments. This involves a combination of direct measurements, machine learning and microclimate modeling approaches.

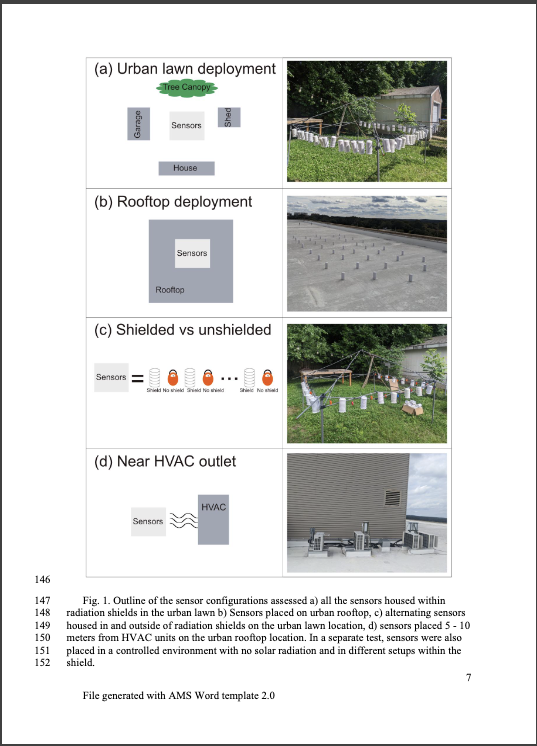

A strategically placed sensor network will be deployed across the city of Durham, measuring air temperature and relative humidity. Using globally available satellite data-based predictor variables, machine learning models will then estimate spatially continuous heat indexes at a high (100 m) resolution (Wang et al., 2023). The placement of these sensors incorporates a range of surface temperature, landcover and shading variations. Therefore, the training and test data for the machine learning model captures the full range of intra urban variation, leading to highly robust machine learning models.
To achieve an even finer scale understanding, the urban microclimate model SOLWEIG will project mean radiant temperature (MRT) at a hyper local 1m resolution. MRT is a measure of thermal comfort, based on the temperature of the surfaces surrounding a point- in this case, a pedestrian in an urban environment. Capturing the complexities of a city at such fine scale is computationally expensive, and typically prohibitive to large scale simulations. However, advances in computational techniques, involving running processes in parallel over multiple GPUs address this challenge (Li & Wang, 2021). Additionally, the results of the sensor network will be used to fine-tune and validate the microclimate model.

Case studies

Once our methodology and model are developed for North Carolina’s Triangle area, our team of researchers will make it broadly applicable to other North American cities. We will work with stakeholders and partners in three other cities, including Phoenix, AZ, Philadelphia, PA, and Chicago IL, to assess the policy relevance and applicability of the maps through these other case studies.By evaluating fewer cities at a higher resolution than is possible by leveraging land-surface temperature alone, we can better understand urban heat stress and its intersections with health impacts and mitigation measures.

We will provide training modules with step-by-step instructions so other cities, researchers and stakeholders can replicate these data and maps for their cities with just a few inputs.

Durham Heat Study

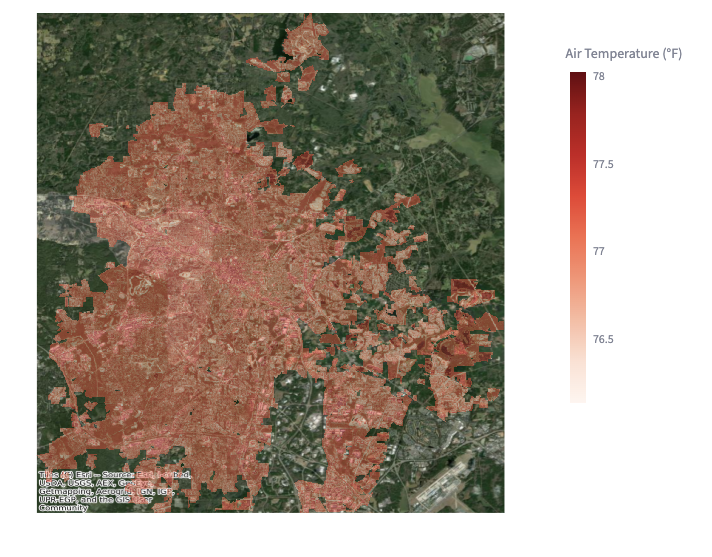

In the summer of 2024, we are deploying a ground-based network of sensors to collect temperature and humidity data throughout Durham every 10 minutes. Check out our map, where we’ve divided Durham into heat deciles based on satellite-derived land surface temperature to ensure we are capturing the variation of heat throughout the city. Within each heat decile, we are measuring temperature and humidity within a variety of shaded/non-shaded conditions as well as land-cover types (i.e., impervious, pervious, etc.).

Background Reading

Citizen and Machine Learning-aided high-resolution mapping of urban heat exposure and stress

Wang, X., Hsu, A., and Chakraborty, T. (2023). Citizen and machine learning-aided high-resolution mapping of urban heat exposure and stress. Environ. Res.: Infrastruct. Sustain. In press https://doi.org/10.1088/2634- 4505/acef57.

Residential segregation and outdoor urban moist heat stress disparities in the United States

Chakraborty, T. Newman, A. J., Qian, Y., Hsu, A., & Sheriff, G. (2023). Residential segregation and outdoor urban moist heat stress disparities in the United States. One Earth, 6(6), 738-750. https://doi.org/10.1016/j.oneear.2023.05.016

Disproportionate exposure to urban heat island intensity across major US cities

Hsu, A., Sheriff, G., Chakraborty, T., & Manya, D. (2021). Disproportionate exposure to urban heat island intensity across major US cities. Nature Communications, 12(1), 1-11. Available at https://rdcu.be/dJ1Cw.

Chapel Hill Heat Watch 2021 – Campaign Report

Data-Driven EnviroLab (2022). Chapel Hill Heat Watch 2021 – Campaign Report (Beta Release). Report compiled and designed by: Xuewei Wang and Angel Hsu, with the help of 40 citizen scientists and in partnership with the NC Museum of Life and Science and the Town of Chapel Hill. Available at https://datadrivenlab.org/wp-content/uploads/2022/03/2021Chapel_Hill_Heat_Watch_Report.pdf.

Community Stakeholder Advisory Group

Recognizing the importance of stakeholder collaboration, we have convened a Community Stakeholder Advisory Board of representatives from historically marginalized communities to co-design and co-create project outcomes that will benefit those most affected by urban heat stress disparities.

The advisory board encompasses a wide range of expertise, including language and citizenship, data sovereignty, data availability and interpretability, community engagement and consent, and heat mitigation services. They confirm the inequalities experienced in their communities and emphasize the need for research to provide the necessary evidence to implement policies addressing historical disparities in environmental challenges. Accessibility is crucial, enabling everyone to access information on aspects of urban heat that directly affect them. Consulting the advisory board at various stages is essential to this project, embedding their guidance to shape outcomes for implementable and impactful results.
